Product properties

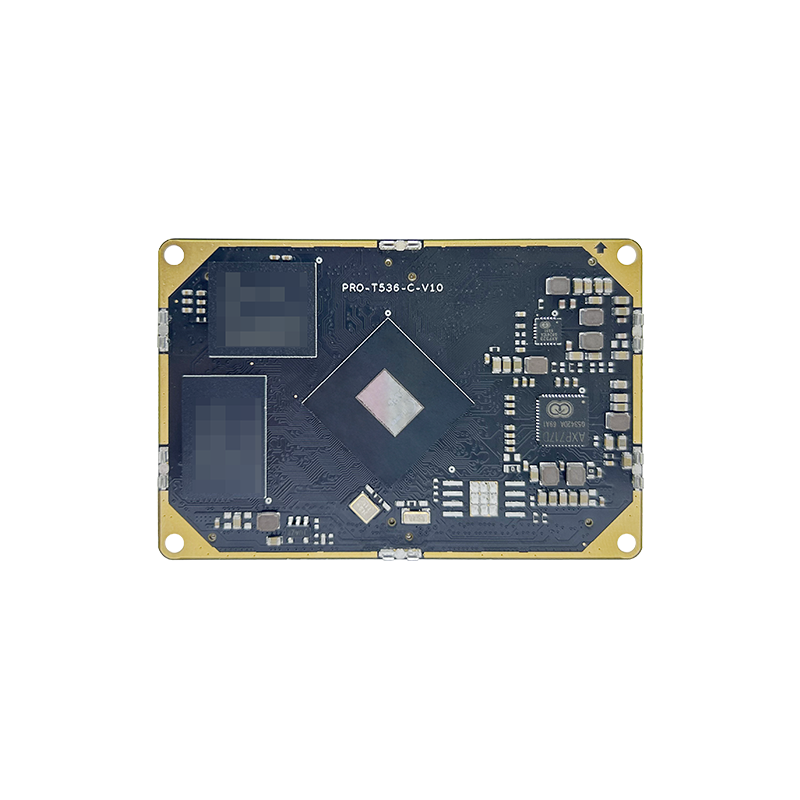

Allwinner PRO-T536 Core Board

SHENZHEN RONGPIN ELECTRONIC TECHNOLOGY CO.,LTD.

Contact information: 0755-235747363

Address: 3rd Floor, Block A, Phase II, Huafeng International Robot Industrial Park, Xixiang Street, Baoan District, Shenzhen (Gushu Metro Exit C)

Product description

BLOCK DIAGRAM OF CPU

Main hardware indicators
size	Length 60mm x width 40mm x height 4.7mm
CPU	Quanzhi T536 Quad-core A55 main frequency 1.75GHz
MCU	E907 RISC-V
NPU	Up to 3 Tops
Memory	LPDDR4 comes with 2G/4G standard (1G/8G batch optional)
Memory	eMMC standard 8G/32G (4G/16G/64G batch optional)
Power Management	AXP717D+AXP323 supports standby, button switch
Operating voltage	Input voltage 5V, maximum power is less than 6W (no peripherals are connected)
Support system	Linux 5.15 Buildroot
Operating temperature	-40 to +85 degrees
