Rockchip RD-RK3588-Video Expansion Board Industrial Control Computer

SHENZHEN RONGPIN ELECTRONIC TECHNOLOGY CO.,LTD.
Contact information: 0755-235747363
Address: 3rd Floor, Block A, Phase II, Huafeng International Robot Industrial Park, Xixiang Street, Baoan District, Shenzhen (Gushu Metro Exit C)
Product description


CPU BLOK DIAGRAM

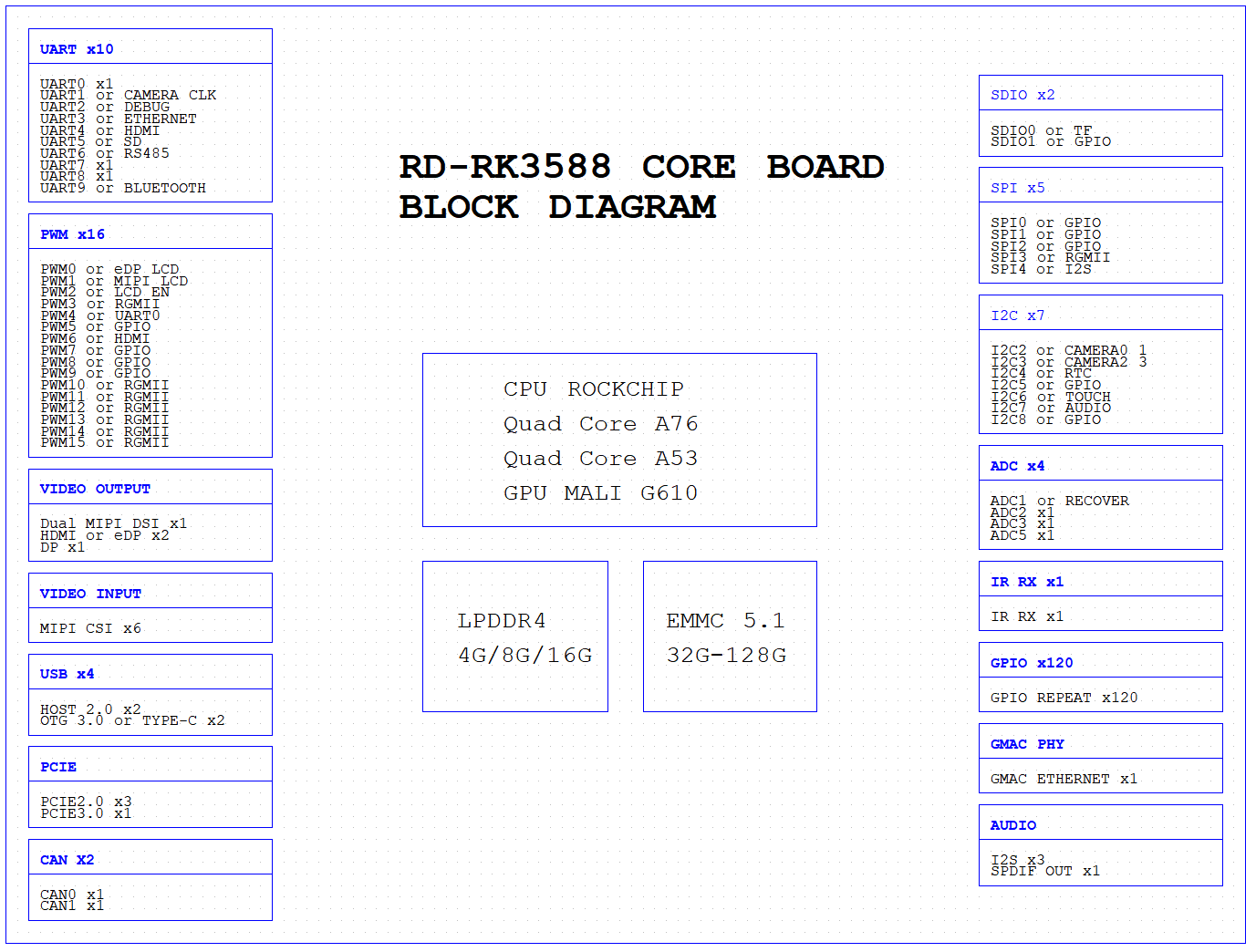

CORE BOARD BLOCK DIAGRAM

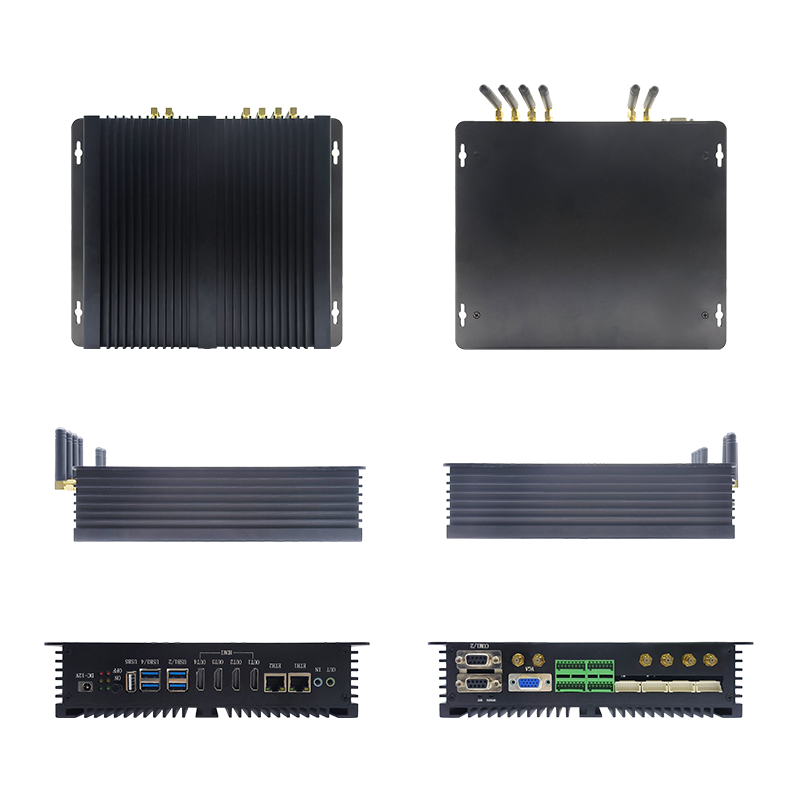

PRODUCT DISPLAY

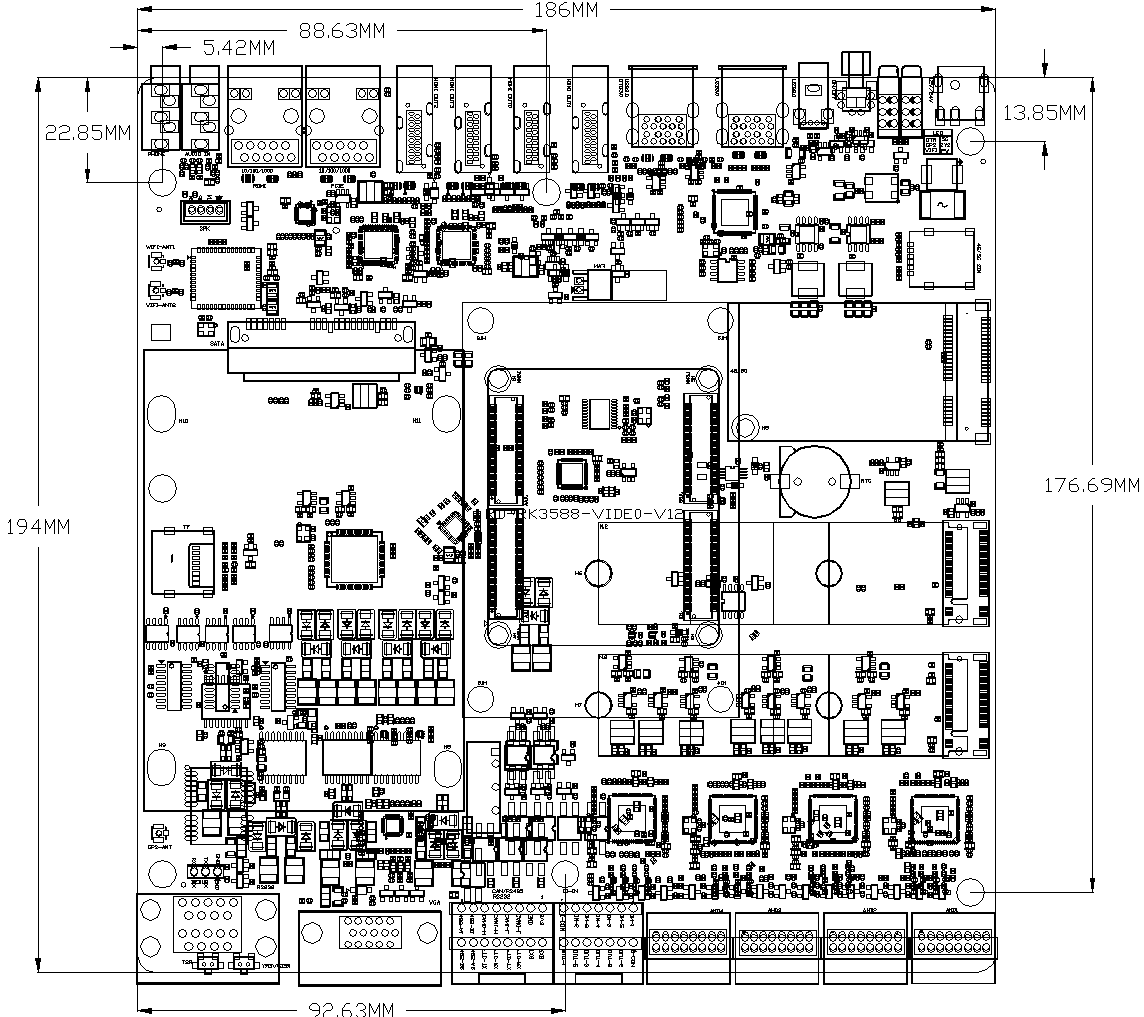

PCB SIZE DRAWING

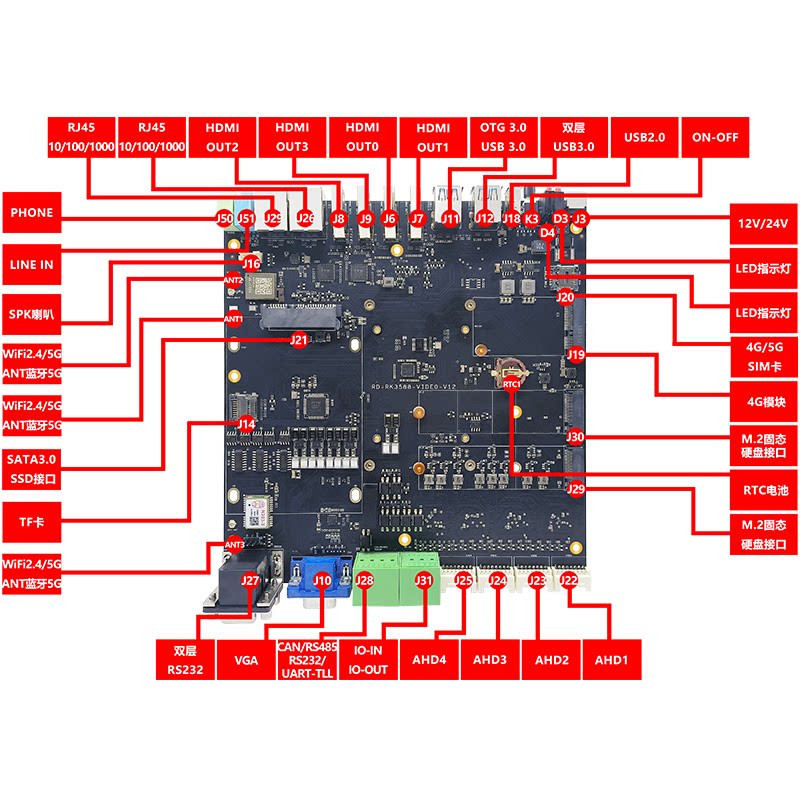

INTERFACE IDENTIFICATION DIAGRAM



HARDWARE INDEX

Main hardware parameters

Motherboard size

186mm long*194mm wide*34mm high

CPU

ROCKCHIP RK3588 eight core (A76+A55)

NPU

6T computing power neural network unit

GPU

ARM G61 MP4

Memory

LPDDR4/4x can be configured with 4GB/8GB/16GB/32GB

memory

EMMC 5.1 can be configured with 32GB/64GB/128GB

Power management

RK809-1

Working voltage
