Main hardware indicators | |
size | 60mm long*40mm wide*3.2mm high |
connection method | Board-to-Board Connector |
CPU | ROCKCHIP RK3588S Octa-Core A76+A55 |
NPU | 6T OPS |
GPU | Mali G61 MP4 |
Memory | LPDDR5 4GB/8GB/16GB/32GB |
memory | EMMC 5.1 standard 32G/64G/128G optional 256G |
power management | RK806 |
Operating Voltage | 3.4-5.5V MAX 15W |
support system | Andriod12/ubuntu20.04/Linux5.10+QT5.15/debian11 |
Operating temperature | -10 to +75 degrees |
Core board common interface | |
hdmi | 1 channel HDMI high-definition output supports up to 4K display |
EDP | 1 channel 4Lane eDP up to 1080P |
DP | 2-way 4Lane DP up to 4K |
MIPI DSI | 2-way MIPI DSI up to 2K |
MIPI CSI | 1 way MIPI CAMERA CSI input |
I2S | Three-way I2S, two-way 8-channel/one-way 2-channel |
PCIe | 2-way PCIE2.0 x1 |
SATA | 2 way SATA3.0 |
USB2.0 | 3-way independent USB2.0, one of which is OTG |
USB3.0 | 1 way USB 3.0 interface (shared with DP) |
ethernet | 1 way RGMII Ethernet interface |
UART | 10 serial ports |
SPI | 4 way SPI |
I2C | 7-way I2C |
PWM | 13 way PWM |
SDIO | 2 SDIO interfaces, one for TF card and the other for SDIO WIFI |
ADC | 3-way analog ADC input interface |
CAN | 3 CAN buses |
GPIOs | Multiplexable GPIO up to 102 |
upgrade | Support USB/TF card local upgrade |

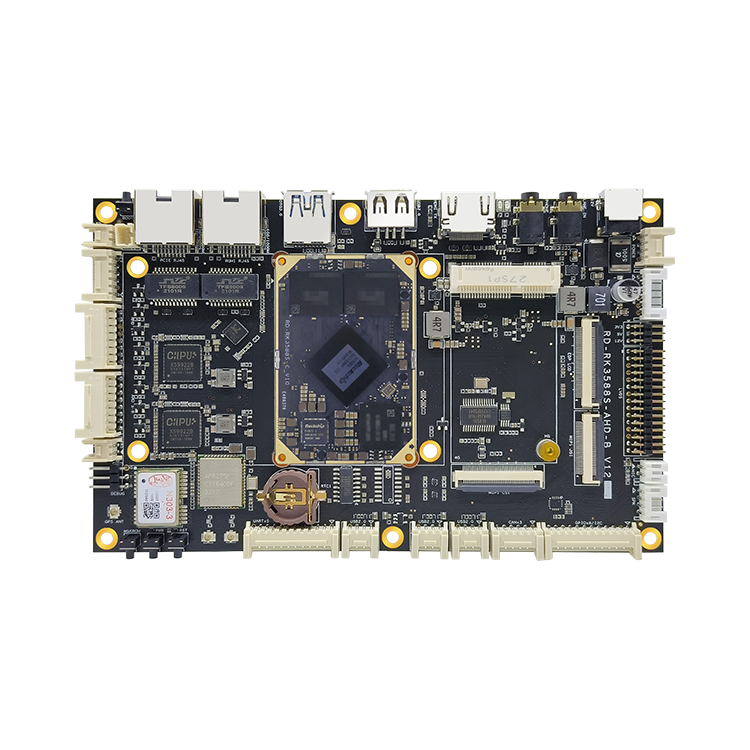

Main hardware parameters | |
motherboard size | 160mm long*100mm wide*14mm high |
CPU | ROCKCHIP RK3588 Octa Core (A76+A55) |
NPU | 6T computing power neural network unit |
GPU | ARM G61 MP4 |
Memory | LPDDR5 can be configured to 4GB/8GB/16GB/32GB |
memory | EMMC 5.1 can be configured with 32GB/64GB/128GB |
power management | RK809-1 |
Operating Voltage | 12V 2A and above |
support system | Andriod12/ubuntu20.04/Linux5.10+QT5.15/debian11 |
operating temperature | -10 to +75 degrees |
life | The continuous operation life is more than 5 years |
Main board common interface | |
USB HOST | 5-way USB ports (2-way external, 3-way plug-in, 1-way OTG3.0) |
serial port | 5 serial ports, 4 of which can be set to RS232 or TTL, one of which is debug |
I2C | 1 way I2C |
CAN | 3 CAN buses |
RS485 | 1 channel RS485 |
GPIOs | 8 available GPIOs |
HDMI output | 1 HDMI output, up to 4K (multiplexed with eDP) |
AHD input | Support 4-way 720P/1080P AHD input |
MIPI DSI display | Support 1 channel MIPI DSI display |
eDP display | 1 channel eDP display interface (multiplexed with HDMI) |
LVDS display | Support single-channel dual-channel LVDS output, up to 1920x1080 |
voice output | 1-way headphone left and right channel output, 2-way speaker output 3W/8 ohms |
Voice input | 1 microphone input |
Ethernet 0 | Support one Gigabit Ethernet (PCIE) |
Ethernet 1 | Support one Gigabit Ethernet (RGMII) |
WiFi | Support WIFI 6 (AP6275) |
Bluetooth | 1CH 5.0G Bluetooth+BLE(AP6275) |
RTC | External RTC chip (HYM8563) consumes less than 0.2uA |
4G | Can be built-in 4G module, support remote and Zhanrui |
TF card | Support TF card |
RTC real time clock | External button battery supports power-down time saving (independent HYM8563) |
System Upgrade | Support local USB upgrade |
RD-RK3588S function and driver support list | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Android 12.0 | Linux | Linux | Linux | Remark | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
hardware function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI0 1080P 4K display | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ADH 4-way camera input | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIPI display (5.5 inch 720x1280 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIPI display (7 inch 1024x600 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIPI display (8 inches 800x1280 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIPI display (10.1 inch 800x1280 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIPI display (10.1 inch 1920x1200 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eDP0 Display (13.3/15.6 inch 1920x1080 plus touch assembly) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LVDS display supports single 6 single 8 double 8 | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LED light (into the system breathing light) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RTC (plug-in HYM8563, save power-off time) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Loudspeaker (the bottom board can be connected to 3W/8 ohm, playing sound) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Headphones (with headphone detection function) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
microphone input | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera USB interface (binocular or monocular) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AP6257 WIFI6 | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bluetooth | ✔ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TYPE-C port (3.0 U disk/3.0 USB camera) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB HUB | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 HOST standard A port (2.0 U disk/2.0 USB camera) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 HOST pin header X 2 (2.0 U disk/2.0 USB camera) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gigabit Ethernet 0 PCIE | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debug serial port | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Serial port 0/1/3/4/6/7/8 (can send and receive data normally) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TF card (test the maximum 128G TF card to transfer files to each other) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reset key (system reset function) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Upgrade button (long press to power on to enter programming mode) | ✔ | ✔ | ✔ | ✔ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4G communication | ✔<
