CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

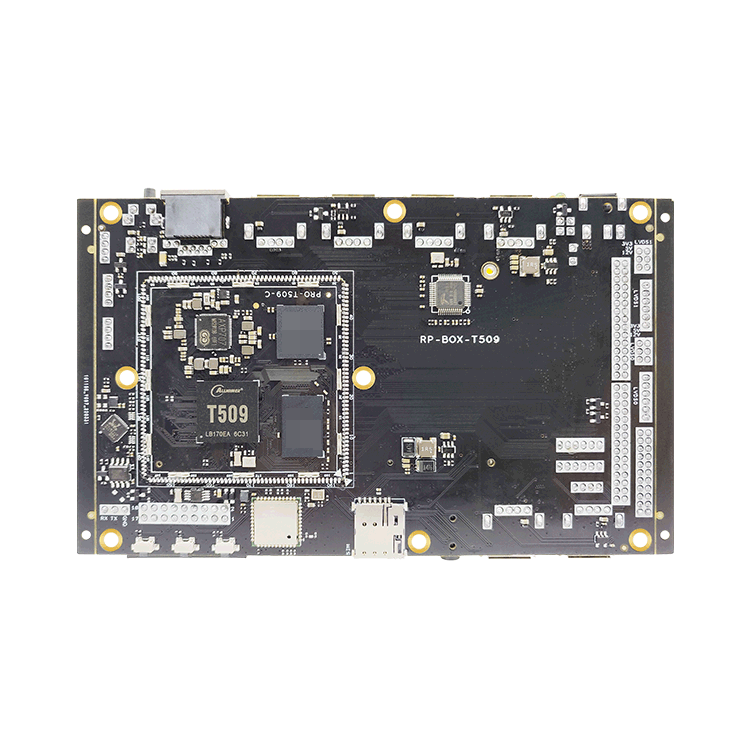

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
Main hardware indicators | |
size | L140mm x W90mm x H16mm |
CPU | Allwinner T509 quad-core clocked at 1.5GHz |
GPU | GE8300 GPU |
Memory | LPDDR4 standard 2G (1G/4G batch optional) |
memory | eMMC standard 8G (4G/16G/32G/64G batch optional) |
power management | AXP707 supports standby, key switch Support charging and discharging, 3.7V power detection |
Operating Voltage | The input voltage is 5V and the maximum power is less than 2W (without any peripherals) |
support system | Android10 |
operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of motherboard | |
USB HOST | 7-way USB port (6-way external, 1-way plug-in) Another OTG2.0 |
serial port | 6-channel TTL 3.3V level (one of which is debug, can be changed to ordinary serial port) |
Other expansion interfaces | 20 IO (with multiplexing) |
MIPI display | MIPI display output up to 1920x1080 |
LVDS display | Dual dual 8 LVDS output up to 1920x1080 |
MIPI CSI input | 2 cameras MIPI RAW/YUV data input |
Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
voice output | 1 channel speaker output 5W/8 ohm |
RS485 | 1 channel RS485 interface |
CAN bus | 2 CAN outputs |
WIFI | WIFI 2.4G (AP6212) |
Bluetooth | 1 channel 2.4G Bluetooth+BLE(AP6212) |
ADC interface | 1 channel ADC interface |
3G/4G | Built-in 4G function, PCI-E 3G/4G Internet access |
TF card | Support TF card |
RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | 120mV | |
current | 162mA | -- | -- | |
supply current (No other peripherals connected) | Turn-on current | 165mA | 229mA | 376mA |
Play sound | 172mA | 192mA | 319mA | |
supply current (connected to the display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
Main hardware indicators | |
size | L140mm x W90mm x H16mm |
CPU | Allwinner T509 quad-core clocked at 1.5GHz |
GPU | GE8300 GPU |
Memory | LPDDR4 standard 2G (1G/4G batch optional) |
memory | eMMC standard 8G (4G/16G/32G/64G batch optional) |
power management | AXP707 supports standby, key switch Support charging and discharging, 3.7V power detection |
Operating Voltage | The input voltage is 5V and the maximum power is less than 2W (without any peripherals) |
support system | Android10 |
operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of motherboard | |
USB HOST | 7-way USB port (6-way external, 1-way plug-in) Another OTG2.0 |
serial port | 6-channel TTL 3.3V level (one of which is debug, can be changed to ordinary serial port) |
Other expansion interfaces | 20 IO (with multiplexing) |
MIPI display | MIPI display output up to 1920x1080 |
LVDS display | Dual dual 8 LVDS output up to 1920x1080 |
MIPI CSI input | 2 cameras MIPI RAW/YUV data input |
Ethernet 1 | 1 channel 10M/100M/1000M RTL8211F |
voice output | 1 channel speaker output 5W/8 ohm |
RS485 | 1 channel RS485 interface |
CAN bus | 2 CAN outputs |
WIFI | WIFI 2.4G (AP6212) |
Bluetooth | 1 channel 2.4G Bluetooth+BLE(AP6212) |
ADC interface | 1 channel ADC interface |
3G/4G | Built-in 4G function, PCI-E 3G/4G Internet access |
TF card | Support TF card |
RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | 120mV | |
current | 162mA | -- | -- | |
supply current (No other peripherals connected) | Turn-on current | 165mA | 229mA | 376mA |
Play sound | 172mA | 192mA | 319mA | |
supply current (connected to the display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
Product Show Case
