CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

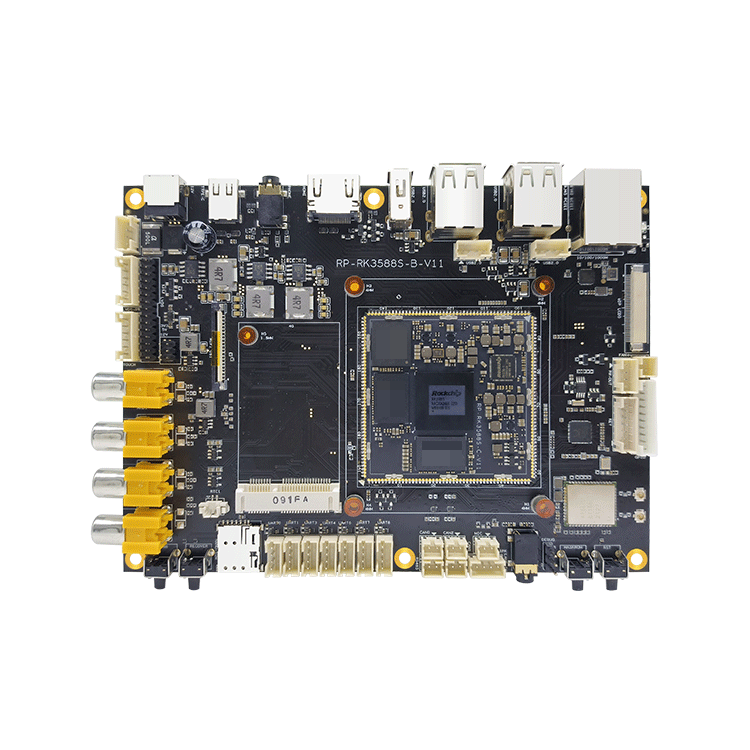

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
Main hardware parameters | |
Motherboard size | 155mm long*115mm wide*17mm high |
CPU | ROCKCHIP RK3588 Octa Core (A76+A55) |
NPU | 6T computing power neural network unit |
GPU | ARM G61 MP4 |
Memory | LPDDR4x can be configured with 4GB/8GB/16GB |
memory | EMMC 5.1 can be configured with 32GB/64GB/128GB |
power management | RK809-1 |
Operating Voltage | Above 12V 2A |
support system | Andriod12/ubuntu18.04/Linux5.10+QT5.15/debian11 |
operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of motherboard | |
USB HOST | 8 USB ports (5 external, 2 internal, 1 TYPE-C) |
serial port | 7 serial ports, 4 of which can be set to RS232 or TTL, and one of which is debug |
I2C | 1 way I2C |
CAN | 3-way CAN bus |
RS485 | 1 channel RS485 |
GPIO | 8 available GPIO |
HDMI output | 1 HDMI output, supports up to 4K (multiplexed with eDP) |
AHD input | Support 4-way 720P AHD input |
MIPI DSI display | Support 2-way MIPI DSI display |
eDP display | 2-channel eDP display interface (multiplexed with HDMI) |
LVDS display | Support single-channel dual-channel LVDS output, up to 1920x1080 |
voice output | 1-way headphone left and right channel output, 2-way speaker output 3W/8 ohm |
Voice input | 1-way microphone input |
Ethernet | Support one Gigabit Ethernet (PCIE) |
WIFI | Support WIFI 6 (AP6275) |
Bluetooth | 1 channel 5.0G Bluetooth+BLE(AP6275) |
RTC | External RTC chip (HYM8563) power consumption is less than 0.2uA |
4G | Built-in 4G module, support Quectel and Zhanrui |
TF card | Support TF card |
RTC real time clock | External button battery supports power-down time saving (independent HYM8563) |
System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 6.5 | 12V | 15 |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Including backplane current test | Turn-on current | 165mA | 275mA | 652mA |
Desktop Quiescent Current | 195mA | |||
surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
