CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

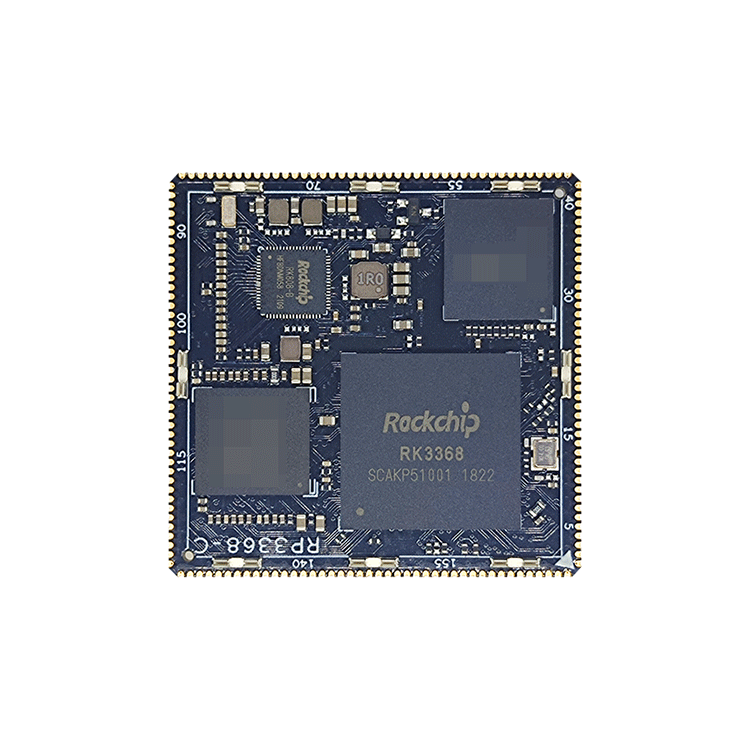

PRODUCT DISPLAY
HARDWARE INDEX
size | 44mm long*44mm wide*3.2mm high |
| CPU | ROCKCHIP RK33368 octa-core A53 |
| GPU | PowerVR G6110 GPU |
| RAM | LPDDR3 standard 2GB, optional 1GB/4G |
| Memory | EMMC 5.1 standard 32GB, optional 8GB/16G/64G/128G |
| Power management | RK808-B |
| lithium battery | none |
| Operating Voltage | 5V 2A or more |
| support system | Andriod 8.1 |
| Operating temperature | -10 to +75 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| HDMI | HDMI HD output supports 4K/1080P display |
| EDP | Support 4Lane eDP up to 1080P |
| RGB | Support RGB888 display output up to 1080P |
| LVDS | Support dual 8LVDS display output up to 1080P |
| MIPI DSI | Support 4Lane, up to 1080P |
| MIPI CSI | Two-channel CSI supports up to two-channel 800W |
| I2S | One I2S interface |
| USB2.0 | Two USB2.0 One of which is OTG |
| Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
| UART | 5 serial ports |
| SPI | 2 way SPI |
| I2C | 4-channel I2C |
| PWM | 3-way PWM |
| TF | 1 way TF card |
| SDIO | 1 SDIO interface |
| GPIO | Reusable GPIO up to 76 |
| ADC | 3 analog ADC input interface |
| upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| RP-BOX-RK3368 driver support list | |
| function list | Android 8.1 |
| hardware function | |
| 5 inch MIPI screen + I2C touch (720x1280) | √ |
| 5.5 inch MIPI screen + I2C touch (720x1280) | √ |
| 7 inch MIPI screen + I2C touch (720x1280) | √ |
| 7 inch MIPI screen + I2C touch (1200x1920) | √ |
| 8 inch MIPI screen + I2C touch (800x1280) | √ |
| 10.1 inch MIPI screen + I2C touch (800x1280) | √ |
| 13.3 inch EDP screen + USB touch (1920x1080) | √ |
| LVDS interface | √ |
| MIPI interface | √ |
| EDP interface | √ |
| HDMI interface | √ |
| Capacitive screen interface (I2C) | √ |
| USB camera | √ |
| USB HOST | √ |
| USB OTG | √ |
| GPIO | √ |
| button | √ |
| SDIO AP6212 WIFI 150Mbps | √ |
| SDIO AP6212 BT 4.0 | √ |
| Ethernet 10M/100M/1000M | √ |
| trumpet | √ |
| earphone | √ |
| microphone | √ |
| serial port | √ |
| TF card | √ |
| RTC | √ |
| 4G or 4G module expansion | √ |
| bus driver | |
| SPI driver | √ |
| ADC driver | √ |
| I2C driver | √ |
| PWM drive | √ |
| SDIO driver | √ |
| GPIO driver | √ |
| USB driver | √ |
| Software function | |
| USB dual camera preview at the same time | √ |
| WIFI hotspot | √ |
| USB printer | √ |
| USB upgrade | √ |
| TF card upgrade | √ |
| OTA upgrade | √ |
| reset | √ |
| serial number | √ |
| MAC address | √ |
| wake up from sleep | √ |
CORRENT PARAMETER TABLE
| Item | minimum | Typical | maximum | |
Power parameters | Voltage | 11.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Boot current | 145mA | 215mA | 495mA | |
| Play sound | -- | 245mA | 512mA | |
| Connect to HMDI boot current | 156mA | 225mA | 498mA | |
| Connect HMDI quiescent current | -- | 265mA | -- | |
