CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

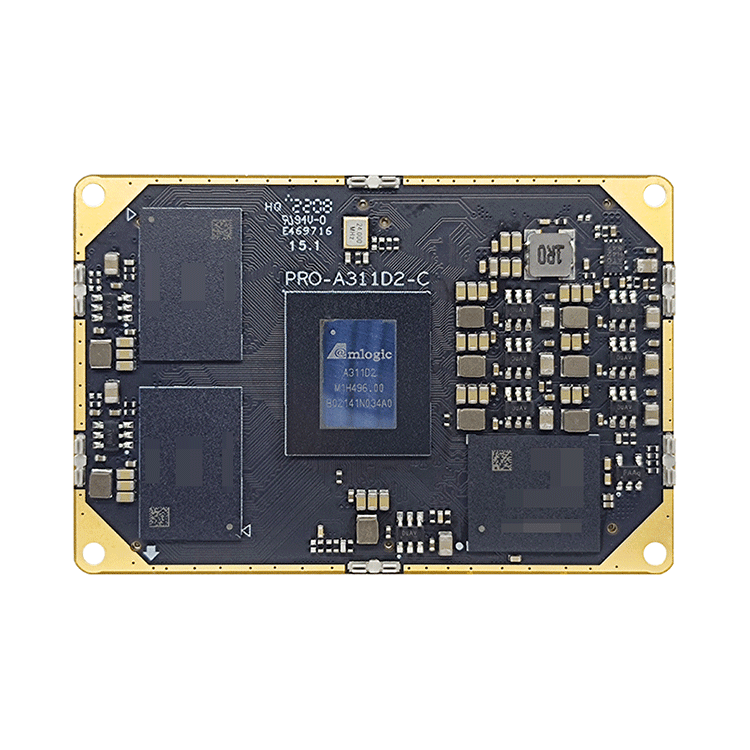

PRODUCT DISPLAY
HARDWARE INDEX
Main hardware indicators | |
size | 60mm long*40mm wide*4.2mm high |
CPU | AMLOGIC A73*4+A53*4 octa-core |
NPU | 3.0 TOPS computing power |
GPU | Mali G52 MP8 |
RAM | LPDDR4x Standard 8GB Optional 16GB |
memory | EMMC 5.1 Standard 32GB Optional 64G/128G |
power management | discrete design |
Operating Voltage | 12V 1A and above |
support system | Android11 |
operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of core board | |
HDMI output | HDMI high-definition output supports 4K/1080P display |
HDMI input | 3 HDMI inputs (3 switching) |
MIPI CSI input | 2-way 4LANE MIPI CSI input |
V BY ONE output | 2-way V BY ONE display output |
MIPI DSI output | 2ch 8lane MIPI DSI display output |
EDP output | 2-channel EDP display output |
LVDS output | 2 LVDS outputs (independent dual 8 / independent single 8) |
UART | 5 serial ports |
PWM | 6-way PWM |
SDIO | Two SDIO, one is connected to WIFI, the other is connected to TF card |
SPI | 6-way SPI |
I2C | 6-way I2C |
ADC | 5 analog ADCs |
Ethernet RMII | The main chip integrates EMAC 100M network port (choose one of the same as 100M) |
Ethernet RGMII | Support RGMII PHY Gigabit Ethernet port expansion (choose one from 100M) |
I2S | One I2S interface |
OTG 2.0 | All the way OTG 2.0 |
USB3.0 | All the way USB 3.0 |
PCIE | One x1 PCIE high-speed interface |
GPIO | Multiplexable GPIO up to 120 |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 6.5 | 12V | 15V |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Including backplane current test | Turn-on current | 115mA | 265mA | 565mA |
Desktop Quiescent Current | 255mA | |||
environment | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
