CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

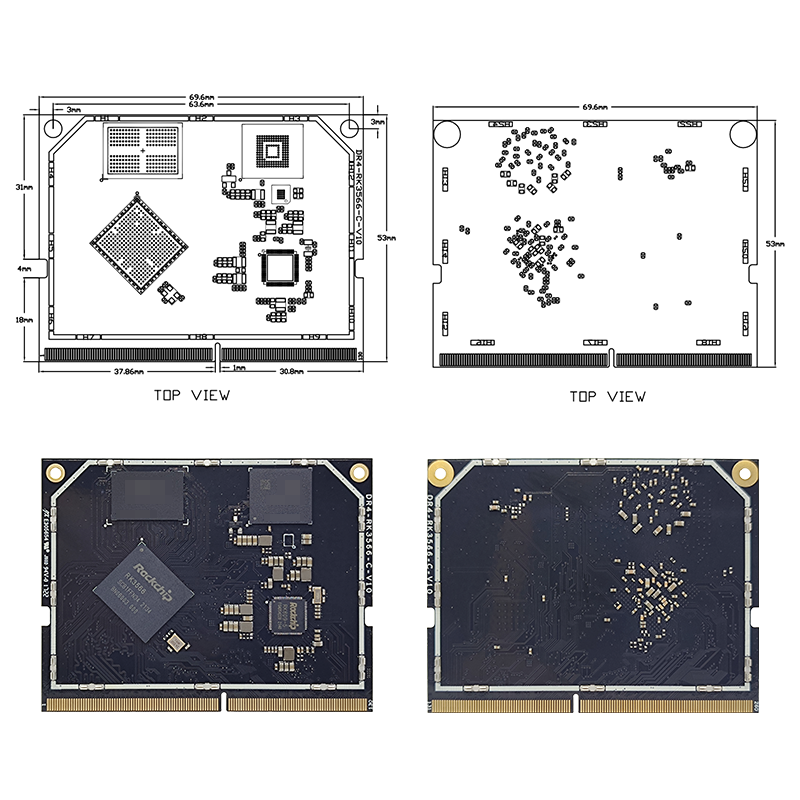

PRODUCT DISPLAY
HARDWARE INDEX
COMMONINTERFACE
Main hardware indicators | |
size | 69.9mm long*53mm wide*3mm high |
Connection method | DDR4 Gold Finger Connection |
CPU | ROCKCHIP RK3566 Quad-core A55 |
GPU | Mali G52 |
Memory | LPDDR4 Standard 2GB Optional 4G/8G |
memory | EMMC 5.1 Standard 8GB Optional 16GB/32G/64G/128G |
power management | RK809-5 |
lithium battery | Charge detection |
Operating Voltage | 3.39V 2A and above |
support system | Andriod11/ubuntu/Linux4.19+QT5.12/Ubuntu18.04 |
operating temperature | -10 to +75 degrees |
life | Continuous operating life is more than 5 years |
CORRENT PARAMETER TABLE
Common interface of core board | |
HDMI | HDMI high-definition output supports 1080P display |
EDP | Support 4Lane eDP up to 1080P |
LVDS | Support single-channel LVDS display output up to 1280x800 |
MIPI DSI | Support 8Lane up to 2K |
DVP camera | Support 16 bit DVP interface camera input |
MIPI CSI | Two-way CSI supports up to 800W |
I2S | Two I2S channels, one channel 8 channels/one channel 2 channels |
PCIE | 1 x1 PCIE 2.0 interface |
SATA | 1 way SATA3.0 interface |
USB2.0 | Four independent USB2.0 channels, one of which is OTG |
USB3.0 | One USB 3.0 interface |
Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
UART | 8 serial ports |
SPI | 3-way SPI |
I2C | 4-way I2C |
PWM | 16-channel PWM |
SDIO | 3-way SDIO interface, one is TF card, the other is WIFI |
ADC | 4-channel analog ADC input interface |
GPIO | Multiplexable GPIO up to 98 |
Voice input | Two-way analog voice input |
voice output | One is headphone output, the other is mono speaker output power 0.6W |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Connect to HDMI | Turn-on current | 78mA | 195mA | 278mA |
Desktop Quiescent Current | 105mA | |||
surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 75℃ | |
storage temperature | -30℃ | -0℃ | 100℃ | |
