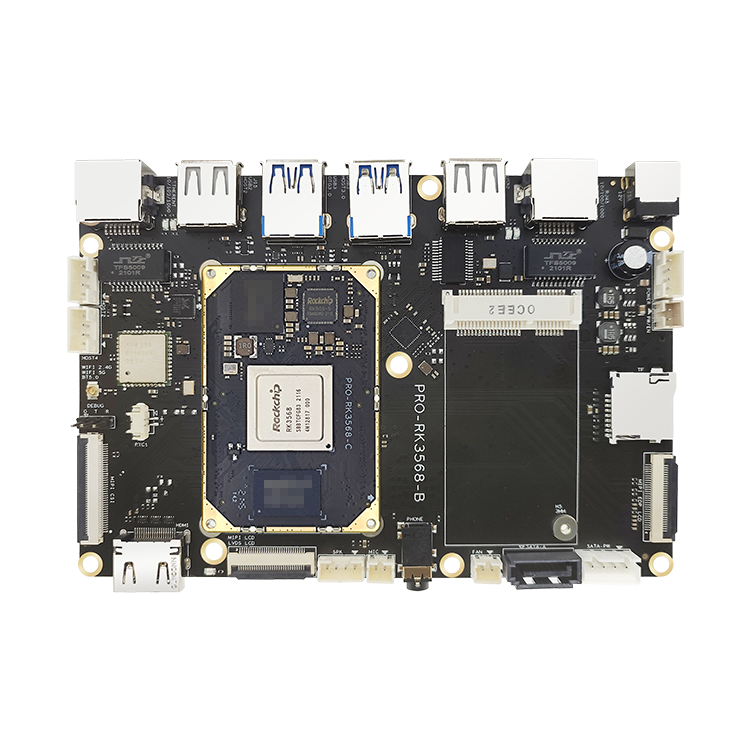

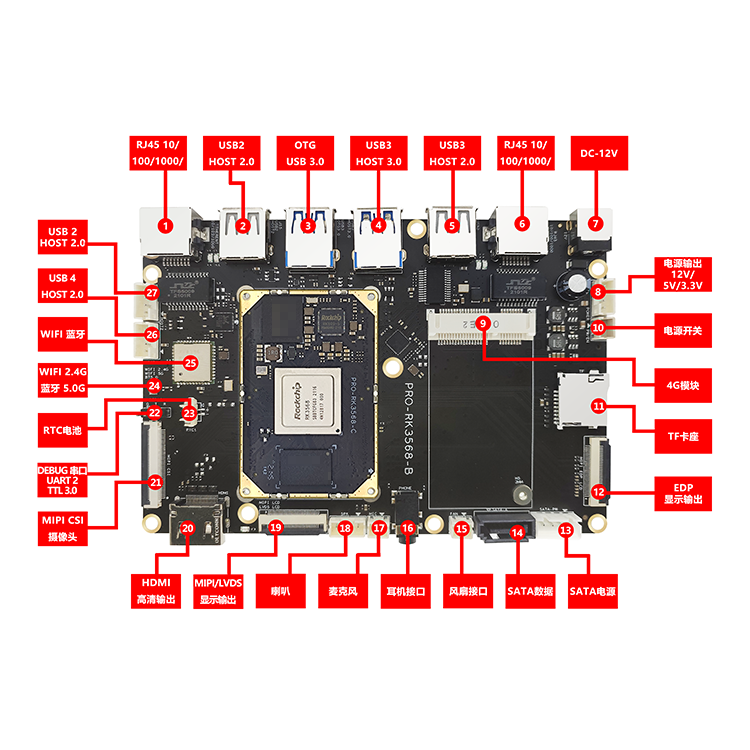

| 尺寸 | 135mm长*90mm宽*14mm高 |
| 连接方式 | 板对板连接器 |
| CPU | ROCKCHIP RK3568 四核A55 |
| GPU | Mali G52 |
| 内存 | DDR4 标配2GB 选配4G |
| 存储器 | EMMC 5.1 标配8GB 选配16GB/32G/64G |
| 电源管理 | RK809-5 |
| 锂电池 | 带电量检测 |
| 工作电压 | 12V 2A以上 |
| 支持系统 | Andriod/Ubuntu/Linux |
| 运行温度 | -10到+75度 |
| 寿命 | 连续运行寿命大于5年以上 |
| USB HOST2.0 | 3 USB, 1 external standard USB, 2 internal |
| USB HOST3.0 | Two external standard USB 3.0 ports, one of which is USB 3.0 |
| Serial port | 6 TTL serial ports, one of which is DEBUG |
| HDMI display | 1 channel HDMI display support 1080P |
| EDP display | Support EDP display output up to 1080P |
| LVDS display | Support single LVDS display output up to 1280x800 |
| MIPI DSI display | 2 channels DSI display output up to 2K |
| MIPI CSI input | 2 way CSI MIPI camera interface |
| Ethernet | 1 headphone left and right channel output, 2 speakers output 5W/8 ohm |
| Voice input | 1 microphone input |
| CAN | 2 CAN bus |
| SATA | SATA hard disk interface |
| TF card | TF card interface max 128G |
| WIFI | AP6256 2.4G/5G dual-band WIFI |
| Bluetooth | AP6256 2.4G Bluetooth 5.0 |
| SPI | 2 way SPI interface |
| I2C | 2-way I2C interface |
| GPS | External GPS (optional) |
| ADC | 8 ADC inputs |
| 3G/4G | 4G function, PCI-E 3G/4G Internet |
| RTC real time clock | HYM8563 external button battery supports power-down time saving |
| System Upgrade | Support local USB upgrade |
RK3568功能及驱动支持列表 | |||||
Android 11.0 | Debian11 Linux 5.10 | Buildroot Linux 5.10 | Ubuntu2004 Linux 5.10 | Open Harmony4.0 Linux 5.10 | |
硬件功能 | |||||
HDMI 1080P显示 | √ | √ | √ | √ | √ |
MIPI显示屏(5.5寸 720x1280加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(5.5寸 1080x1920加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(7寸 1024x600加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(7寸 1200x1920加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(8寸 800x1280加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(10.1寸 800x1280加触摸总成) | √ | √ | √ | √ | √ |
MIPI显示屏(10.1寸 1920x1200加触摸总成) | √ | √ | √ | √ | √ |
LVDS显示屏(10.1寸 1024x600加触摸总成) | √ | √ | √ | √ | √ |
eDP显示屏(13.3寸 1920x1080加触摸总成) | √ | √ | √ | √ | √ |
LED灯(进系统呼吸灯) | √ | √ | √ | √ | √ |
MIPI摄像头单目 GC2093 200W宽动态 | √ | √ | √ | √ | |
RTC(外挂HYM8563，掉电时间保存) | √ | √ | √ | √ | √ |
喇叭 | √ | √ | √ | √ | √ |
耳机 | √ | √ | √ | √ | √ |
麦克风输入 | √ | √ | √ | √ | |
摄像头USB接口(双目或单目) | √ | √ | √ | √ | |
2.4G/5G 双频WIFI(AP6256 iperf测试) | √ | √ | √ | √ | √ |
2.4G/5G 蓝牙(AP6256 支持BLE且相互传文件) | √ | √ | √ | ||
USB3.0 OTG 标准A口 | √ | √ | √ | √ | √ |
USB3.0 HOST 标准A口 | √ | √ | √ | √ | √ |
USB2.0 HOST 标准A口 | √ | √ | √ | √ | √ |
USB2.0 HOST 排针式 | √ | √ | √ | √ | √ |
PCIE3.0 | √ | √ | √ | √ | √ |
PCIE2.0 | √ | √ | √ | √ | √ |
SATA2.0 | √ | √ | √ | √ | √ |
千兆以太网0（RTL8211F LED指示灯及iperf测试） | √ | √ | √ | √ | √ |
千兆以太网1（RTL8211F LED指示灯及iperf测试） | √ | √ | √ | √ | |
调试串口（可收发，也可作为普通串口） | √ | √ | √ | √ | √ |
串口0/3/4/7/9（可正常收发数据） | √ | √ | √ | √ | √ |
TF卡（测试最大128G TF卡相互传文件） | √ | √ | √ | √ | √ |
复位键（系统复位功能） | √ | √ | √ | √ | √ |
升级键（长按上电能进入烧写模式） | √ | √ | √ | √ | √ |
4G通迅（移远EC20 CAT1） | √ | √ | √ | √ | |
GPS+北斗 | √ | √ | |||
ADC0/1/2/3/4/5/6/7 排针引出 数据读取 | √ | √ | √ | √ | √ |
SPI接收发送 | √ | √ | √ | √ | √ |
CAN接收发送 | √ | √ | √ | √ | √ |
总线驱动 | |||||
PCIE 驱动 | √ | √ | √ | √ | √ |
SPI 驱动 | √ | √ | √ | √ | √ |
ADC 驱动 | √ | √ | √ | √ | √ |
I2C 驱动 | √ | √ | √ | √ | √ |
PWM 驱动 | √ | √ | √ | √ | √ |
SDIO 驱动 | √ | √ | √ | √ | √ |
GPIO 驱动 | √ | √ | √ | √ | √ |
USB 驱动 | √ | √ | √ | √ | √ |
软件功能 | |||||
.H264视频编码 1080P 100fps | √ | ||||
.H264视频解码 4K 60fps | √ | ||||
.H265视频编码 1080P 100fps | √ | ||||
.H265视频解码 4K 60fps | √ | ||||
USB打印机 | √ | ||||
USB升级 | √ | √ | √ | √ | √ |
TF卡升级 | √ | ||||
OTA升级 | √ | ||||
恢复出厂设置 | √ | ||||
序列号 | √ | ||||
MAC地址 | √ | ||||
体眠唤醒 | √ | ||||
| Item | The smallest | Typical | maximum | |
| Power parameters | Voltage | 11V | 12V | 15V |
| Ripple | 50mV | |||
| 3V RTC power consumption | 0.9uA | |||
Mainboard current test (Other peripherals are not connected) | Boot current | 110mA | 223mA | 355mA |
| Desktop quiescent current | 135mA | |||
Mainboard current test Connect to 7 inch 1024x600 | boot current | 245mA | 295mA | 498mA |
| Desktop quiescent current | 245mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ | |
| Storage temperature | -30℃ | -0℃ | 100℃ | |
